Volt Stick LV12

12v AC Non-contact Voltage Tester, Intrinsically-safe (ATEX)

Volt Stick LV50 applications

This product could save your life!

The new Volt Stick LV12 is a high sensitivity, intrinsically-safe version of our market-leading Volt Stick non-contact voltage checker.

Whilst exhibiting our Volt Stick LV50 at the World Gas Conference in 2018 we took the opportunity to talk to safety managers from across the world and discovered that there was a requirement for a more sensitive, intrinsically-safe Volt Stick. (Click here for more on Touch Potential Safety Thresholds).

The Volt Stick LV12 was developed, therefore, as a safety checking device for utilities field engineers to test metallic surfaces, pipework and cables to be safe from potentially lethal voltages at the lower levels required by some safety regulations.

The Volt Stick LV12 is sensitive down to just 12v AC allowing for instant - and potentially life-saving - identification of spurious / unexpected live voltages in materials, devices or workspaces.

Used in a wide variety of hazardous and potentially explosive atmospheres - such as gas and petrochemical applications - the LV12 is both ATEX and IECEx approved to be intrinsically-safe.

Approvals: Ex ib IIB T3 Gb, IECEx ExV 16.0018.

Download Volt Stick 110 Spec SheetDownload Volt Stick BrochureWhere to buy Volt Stick LV50


What is intrinsically safe / ATEX approval?What is ATEX Approval?

ATEX is the formal name given to the two European Directives for controlling explosive atmospheres. We take an in-depth look at ATEX Approval and its requirements for equipment in hazardous areas.
Click here to find out more about intrinsically-safe devices and ATEX approval.


CenterPoint Energy uses VoltStick LV12

Click here to find out how the Volt Stick LV12 was approved for use by CenterPoint Energy engineers...




Features:

  • ATEX and IECEx approved voltage indicator for use in explosive atmospheres

  • Voltage indicator with safety handguard to avoid unintentional contact with live conductors

  • Voltage range 12 ~ 1000v AC

  • Fully insulated for safe use

  • Fully approved to IECEX 61010-1, CATIV 1000v AC

  • UKCA & CE approved

Attribute Value
Voltage Range 12 ~ 1000v AC
Sensitivity Indicator will illuminate at 4mm distance of a 2.5mm conductor carrying 12v
Response Time Immediate
Intrinsically Safe Yes
Power Requirements 2 x Standard AAA alkaline batteries (supplied)
Relative Humidity 80% @ 30°C, 50% @ 40°C
Operating Temperature -20 ~ +50°C
Overvoltage CATIV 1000v AC
Ingress Protection Rating IP64
Dimensions 145(L) x 18(Ø)mm
Weight (Net) 0.04kg

Volt Stick logo

Need more information?

Contact the Volt Stick sales team for further information by completing our Contact Form or email us now at info@voltstick.com

Or call us now on:  Volt Stick phone number


Projects this product was used in

Project Image
TECO Peoples Gas – Florida View
Project Image
Volt Stick partners with Irby Utilities to supply US market View
Project Image

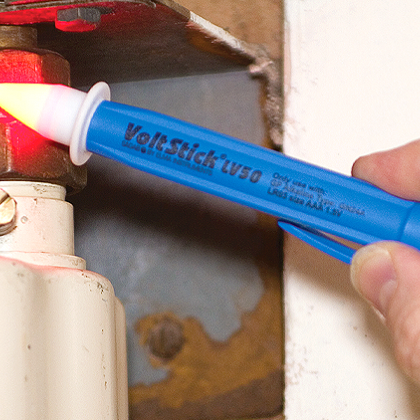

Volt Stick LV50 voltage detector developed for National Grid US View
Project Image

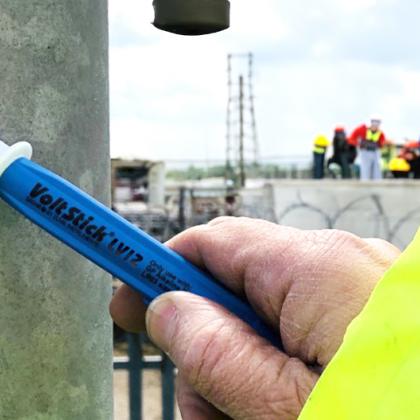

ATEX Volt Stick LV12 developed for Brent View
