Elma 9200BT

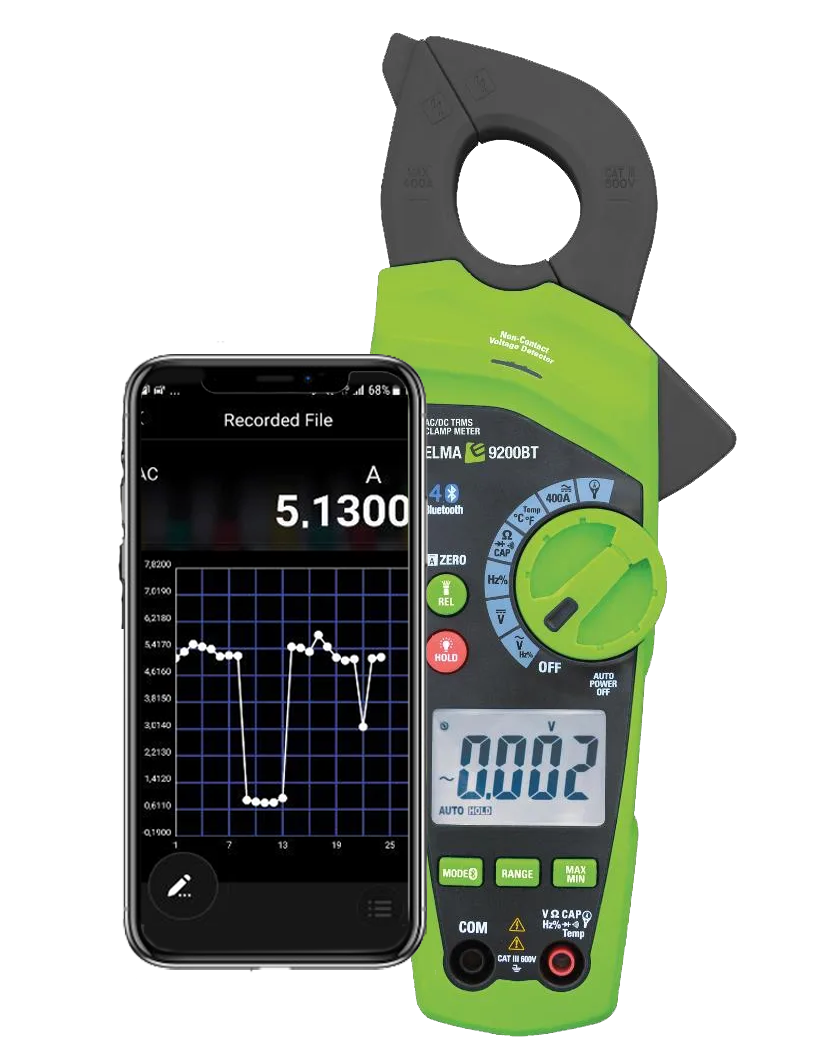

Elma 9200BT True RMS AC/DC clamp multimeter with Bluetooth

The Elma 9200BT is a robust True RMS AC/DC clamp meter featuring Bluetooth connectivity, capable of measuring current, voltage, frequency, capacitance, temperature, duty cycle, resistance, and continuity.

Additionally, it can measure up to 3000A using the optional ElmaFlex 430 clamp. The free Elma Link app for iOS and Android transforms the 9200BT into a safe documentation tool, allowing remote measurement viewing and recording, trend analysis, comment addition, and data sharing.

Equipped with a large backlit display, LED torch, voltage detector, data hold, relative/maximum/minimum functions, and auto power off, this EN61010-1 CAT III 600V compliant clamp meter comes with a carrying case, test leads, batteries, manual, and temperature probe.

download spec sheet button




Features:

9200BT



  • Rugged True RMS AC/DC clamp meter with Bluetooth
  • Measures current, voltage, frequency, capacitance, temperature, duty cycle, resistance, and continuity.
  • Can measure up to 3000A with the optional ElmaFlex 430 clamp.
  • Smart documentation with Elma Link app: Enables remote viewing, recording, and sharing of measurement data.
  • Includes backlit display, LED torch, voltage detector, data hold, and auto power off.
Attribute Value
Current AC/DC 0...60...400A
Accuracy ±2,0% + 8D
Voltage AC/DC 0...6...60...600V
Resistance 0...600...6k...60k...600k...6M...60MΩ
Frequency 10Hz...10MHz
Temperature -20...760°C
Duty Cycle 20...80%
Display 3 6/7 ciffer, 6000 counts
Clamp Diameter 30mm
Batteries 2 stk. 1,5V LR03 AAA (Incl.)
Dimensions 215x80x39mm
Weight 285g
